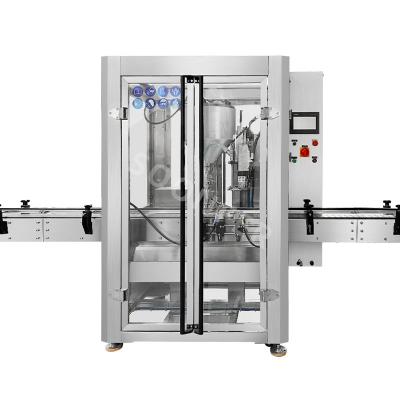

Automatic Bottle Jar Chutney Paste Hot Chili Sauce Filling Machine
Automatic liquid filling machine
The automatic liquid filling machine is suitable for filling liquids, pastes, and sauces, such as soy sauce, chili sauce, jam, ketchup, mayonnaise, wine, fish sauce, honey, juice, coffee, tea, toner, facial cream, etc.
Specification of liquid filling machine
| Model |
SF-GSF1 |
|
Filling range |
100-1000ml |
|
Filling speed |
1200-2400 bottles/hour |
|
Measurement accuracy |
±1% |
|
Power |
220V, 50/60Hz, 1.5kw |
|
Air pressure |
0.6-0.8mpa |
|
Machine size |
2000(L)*1200(W)*2100(H)mm |
|
Machine weight |
200kg |
Features of liquid filling machine
1. The machine can automatically complete a series of workflows such as bottle transportation, measurement, filling, and bottle output. 2. Miniaturized design, smaller footprint, and more convenient inspection and maintenance. 3. It has automatic discharging and cleaning function, no need to disassemble parts, discharging and cleaning can be carried out by filling water. 4. The metering method supports customization, and metering mechanisms such as gear pumps, pneumatic pumps, and rotor pumps can be used. 5. Using intelligent PLC control, the machine can be used without debugging after it arrives at the factory.
