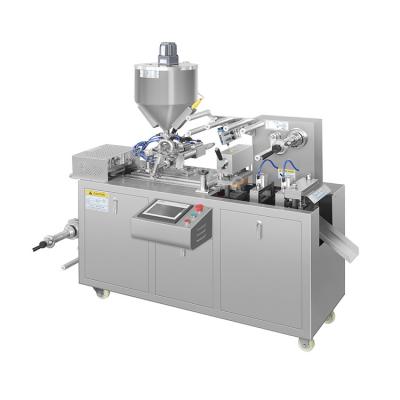

Automatic liquid sauce ketchup butter honey jam blister packing machine
Application of tea stick bag packing machine

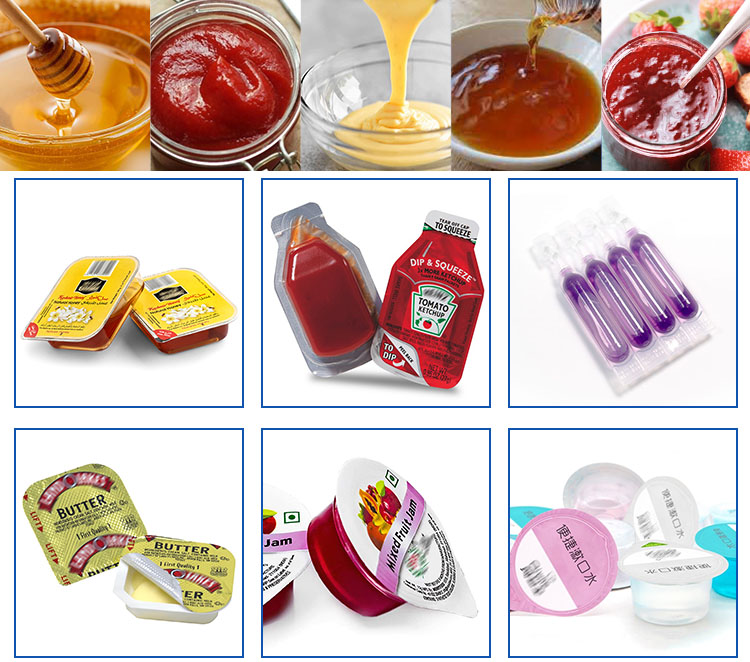

This machine is suitable for the automatic packaging of various liquid paste items in the food, chemical, daily chemical and other industries, such as cream, honey, tartar sauce, fish sauce, mayonnaise, salad dressing, tomato sauce, jam, chocolate sauce, liquid cheese etc.
Specification of tea stick bag packing machine
|
Punch frequency |
10-20 times/min |
|
Production capacity |
2400 plates/hour |
| Max. forming area & depth |
105*70mm(standard depth ≦15mm), Max. depth 25mm( customized) |
|
Standard stroke range |
30-80mm(can be designed as user’s requirement) |
|
Standard plate size |
80*70mm(can be designed as user’s requirement) |
|
Air pressure |
0.4-0.6Mpa |
|
Compressed air required |
Air compressor≥0.3m³/min |
|
Total power supply |
220V, 50Hz, 2.8kw |
|
Main motor |
0.75kw |
|
PVC hard Film |
0.15-0.5*110mm |
|
PTP aluminum film |
0.02-0.035*110mm |
|
Dialysis Paper |
50-100g*110mm |
|
Mould cooling |
Tap water or recycling water |
|
Dimension |
(L)1840*(W)900*(H)1300mm |
|
Weight |
Net weight: 480kg, gross weight: 550kg |
|
Noise index |
<75dBA |
Feature of tea stick bag packing machine
1. It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
2. Imported controlling system is adopted. Also it can be equipped with detecting and rejection function device for number of medicines according to the user’s requirement.

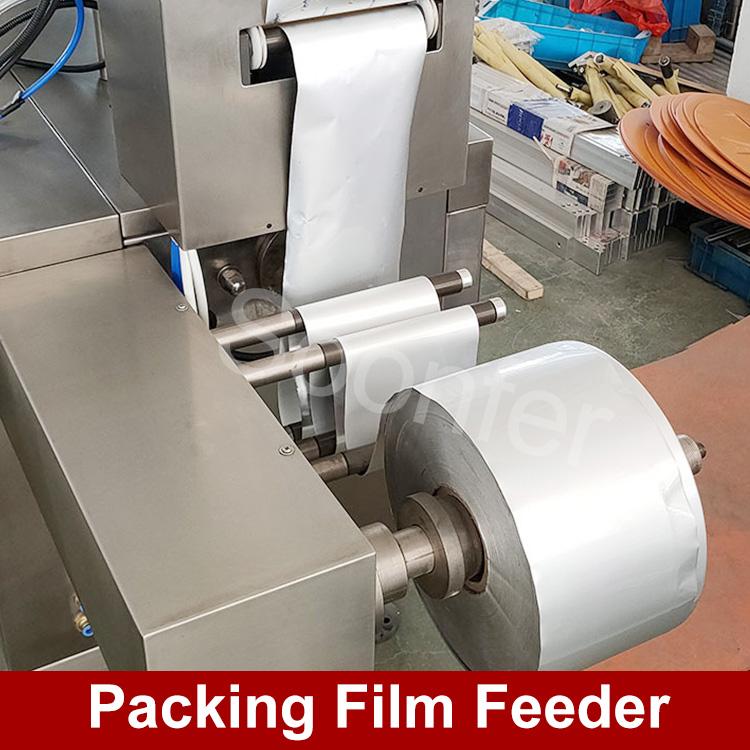

3. It adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the synchronous stability of over- length distance and multi stations.
4. It can be optional equipped with photocell correction device, imported stepper motor traction and image-character register to optimize packing grade.
